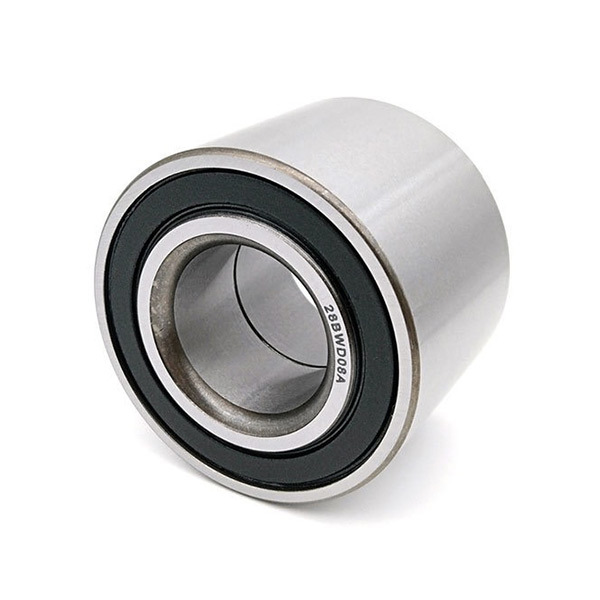

Wheel hub bearing DAC Series 2

Wheel hub bearing is mainly for bearing and accurately guiding the rotation of the hub. It bears both the axial load and the radial load, and is a very important component. Wheel bearings are sets of steel balls or tapers held together by a metal ring. They enable the wheels to rotate smoothly with minimal friction.

Category：

Wheel Hub Bearings

+86-15265513831

sale@shangzhibearing.com

E-mail

Message

Product Description

Product Details

Wheel hub bearing is mainly for bearing and accurately guiding the rotation of the hub. It bears both the axial load and the radial load, and is a very important component.
Wheel bearings are sets of steel balls or tapers held together by a metal ring. They enable the wheels to rotate smoothly with minimal friction.

Bearing Number	JAPAN(KOYO)	GERMANY(FAG)	SWEDEN(SKF)	JAPAN(NSK)	Dimension(mm)
					d	D	B	C
DAC38650052/48					38	65	52	48
DAC38680037				38KWD02	38	68	37	37
DAC386939/34					38	69	39	34
DAC38700037		ZFRTBRGH0037	BAHB636193C		38	70	37	37
DAC38700038	DAC3870BWCS41 DAC3870DWCS41		686908A	38BWD21CA53	38	70	38	38
DAC38700040					38	70	40	40
DAC38710033/30	3871W-2CS70		FW135	38BWD09ACA12	38	71	33	30
DAC38710039		574795A	VKBA3929	30BWD22	38	71	39	39
DAC38720034	DAC3872ACS42		VKBA1381	38BWD04CA60	38	72	34	34
DAC38720036/33	DAC3872W8CS81 DAC3872W-3 DAC3872W-6			30BWD12	38	72	36	33
DAC38720236/33	DAC3872W-3CS72 DAC3872W-8CS72 DAC3872-WCS81		FW128 VKBA1191	38BWD12	38	72.02	36	33
DAC38720040	DAC3872W-10 DAC3872B12RSCS42	575069B	FW102 FWB12 VKBA1377		38	72	40	40
DAC38730040	DAC3973-1 DAC38732B12RSCS53 3873W-12RSC5		VKBA3245	38BWD26E	38	73	40	40
DAC38740036/33	DAC3874W-6 DAC387436 BWDS69	574795A	DAD3874368W FW114,WB1144 VKBA1341147 BAH0041 VKBA32011	38BWD07-26G 38BWD15 38BWD16A 38BWD01A1ACA 38BWD24 38BWD01ACA12	38	74	36	33
DAC38740236/33	DAC3874E-6CS84		BHAH-0041	38BWD01A1	38	74.02	36	33
DAC38740040				38BWD01	38	74	40	40
DAC38740050			FW116/FWB116	38BWD06DAC71	38	74	50	50
DAC38740450		559192		38BWD06DAC72	38	74.04	50	50
DAC38800036/33				38BWD18	38	80	36	33
DAC381700037			BAHB636193C	38BWD19	38.1	70	37	37
DAC39680037	DAC39680037	439622C 803374 528810 528820 540733BA	BA2B309692 BAHB311315 BAFB447333BD VKBA575	39BWD03CA69 JRM3939 3968XD 39BWD02	39	68	37	37
DAC39680637		540733CA	BAHB311315AD		39	68.06	37	37
DAC39680737					39	68.07	37	37
DAC39680837				39BWD02J	39	68.08	37	37
DAC39720037	DAC3972AW4 DAC3972D-2RS	542186A 544096 581169 579794CA 524096	BAHB311396B 309639 BAH0036 BA2B309639BA VKBA736 VKBA3531	39WD01L 39BWD01BCA81	39	72	37	37
DAC39720637		542186CA			39	72.06	37	37
DAC39740034					39	74	34	34
DAC39740036/34			395418		39	74	36	34
DAC39740038					39	74	38	38
DAC39740039	BAHB636096A	579557 581108CA	BAHB636096A	39BWD05	39	74	39	39
DAC39/41750037	DAC39/41750037	567447B	BAHB633815A VKBA1355		39/41	75	37	37
DAC40680037					40	68	37	37
DAC40680042					40	68	42	42
