Self-aligning Ball Bearings 1200 Series
Self-aligning Ball Bearings 1200 Series
Self-aligning Ball Bearings 1200 Series
Self-aligning Ball Bearings 1200 Series
Self-aligning Ball Bearings 1200 Series
Self-aligning Ball Bearings 1200 Series
Self-aligning Ball Bearings 1200 Series
Self-aligning Ball Bearings 1200 Series
Self-aligning Ball Bearings 1200 Series
Self-aligning Ball Bearings 1200 Series
Self-aligning Ball Bearings 1200 Series
Self-aligning Ball Bearings 1200 Series

Self-aligning Ball Bearings 1200 Series

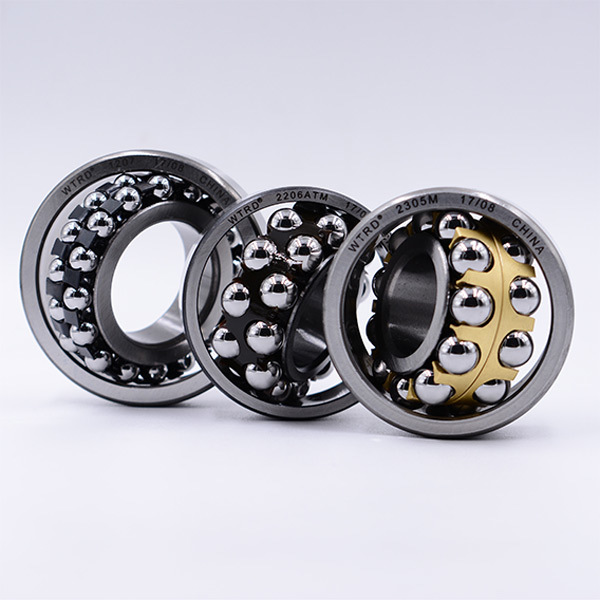

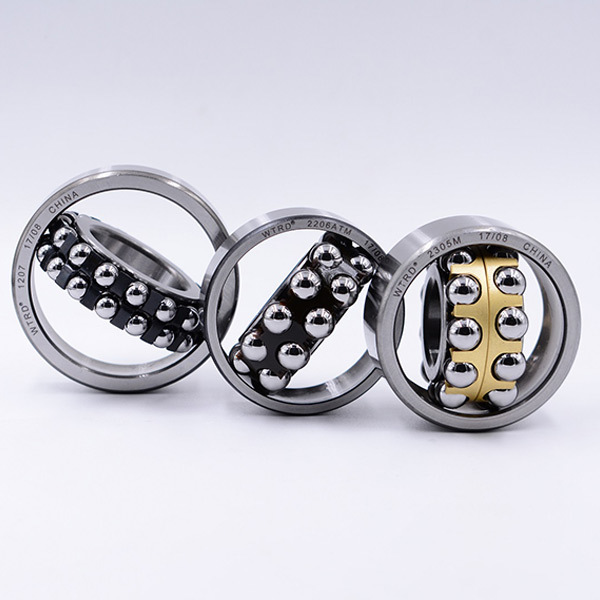

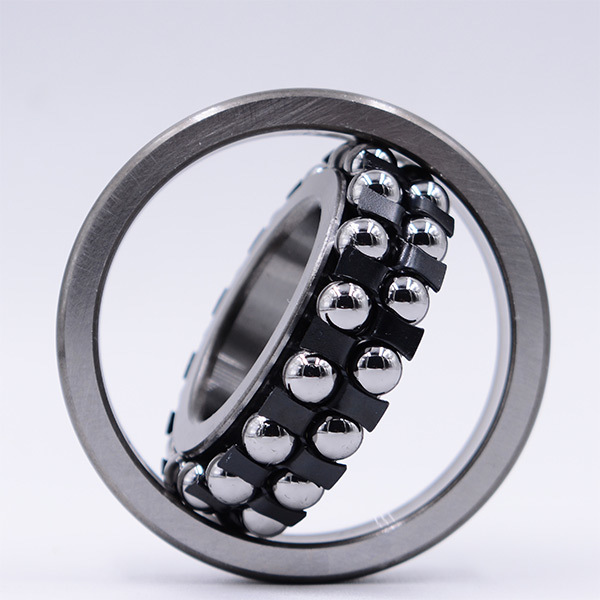

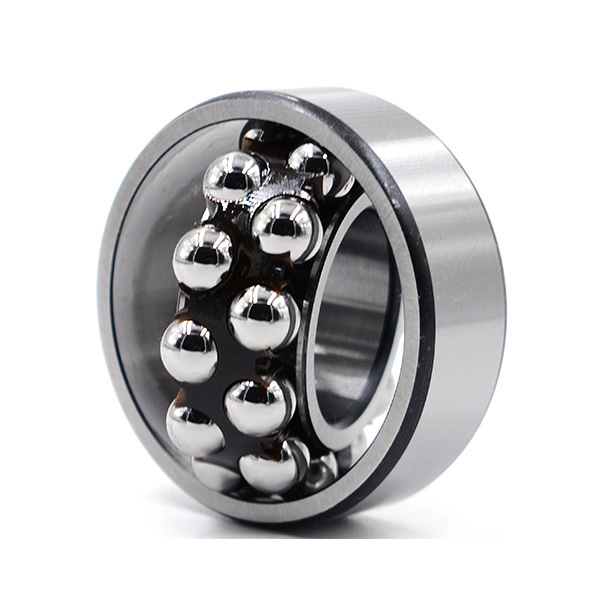

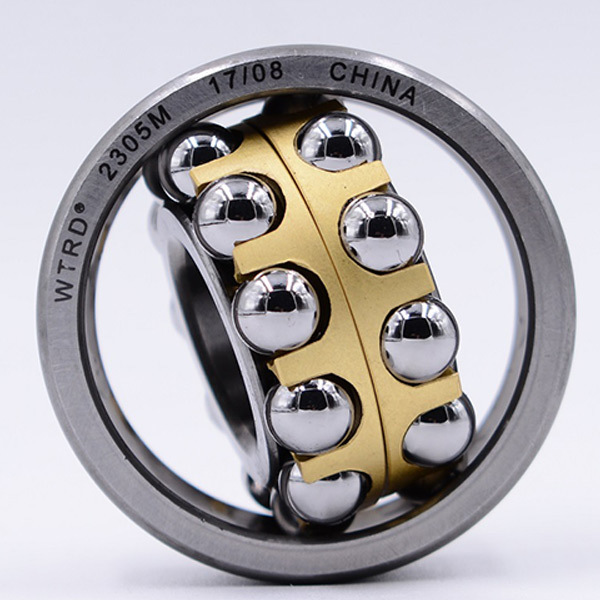

1200 Series Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Category：

Self-aligning Ball Bearings

+86-15265513831

Whatsapp

sale@shangzhibearing.com

E-mail

Message

Product Description

Product Details

1200 Series Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.



Bearing Number

d mm

D mm

B mm

1200

10

30

9

1202



35

11

1203

17

40

12

1204

20

47

14

1205

25

52

15

1206

30

62

16

1207

35

72

17

1208

40

80

18

1209

45

85

19

1210

50

90

20

1212

60

110

22

1213

65

120

23

1214

70

125

24

1215

75

130

25

1216

80

140

26

1217

85

150

28

1218

90

160

30

1219

95

170

32

1220

100

180

34

1221

105

190

36
