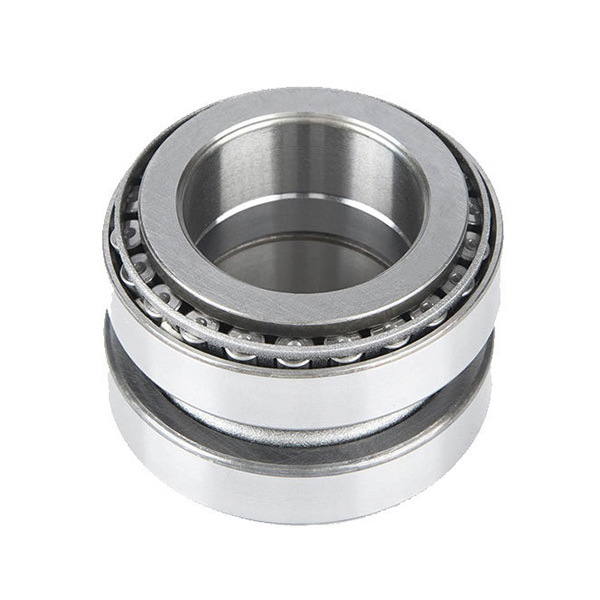

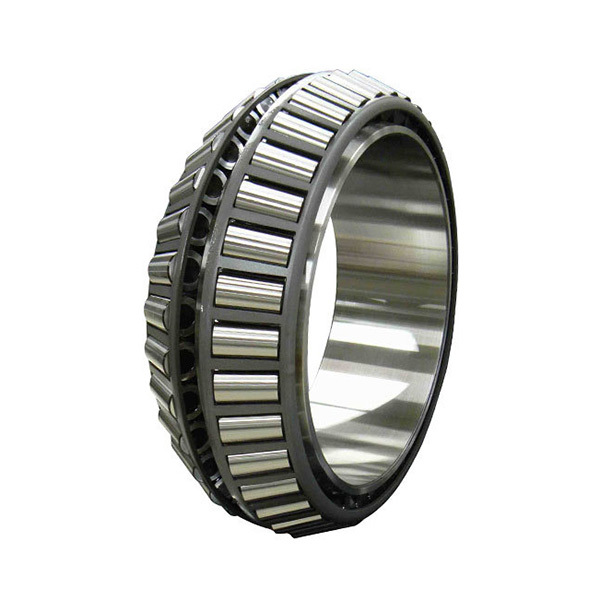

Imperial Double Row

Inch double-row tapered roller bearings increase the radial load capacity due to the increase in the number of roller rows, and at the same time, can also withstand large bidirectional axial loads. It is mainly used to bear the combined radial and axial loads mainly based on radial loads. It can limit the axial displacement of the shaft (or housing) in both directions, so it can be used as a bidirectional axial positioning.

Category：

Tapered Roller Bearings

+86-15265513831

sale@shangzhibearing.com

E-mail

Message

Product Description

Product Details

Bearing Number	Dimensions(mm)
NA484/472D	70×120×65.09
598/592D	92.075×152.4×82.55
687/672D	101.6×168.275×92.075
861/854D	101.6×190.5×127
896/892D	136.525×228.6×123.825
JRM3535/JRM3564XD	35×64×18.5
JRM3939/JRM3968XD	39×68×18.5
8578/8520DC	241.3×327.025×114.3
64450/64700D	114.3×177.8×92.075
NA46790-SW/46720CD	165.1×225.425×95.25
NA48685SW/48620D	147.875×200.025×43.665
71437/71751D	111.125×190.5×106.362
74550/74851ZDC	139.7×215.9×106.362
82550/82932D	139.702×236.538×131.763
82562/82932D	142.875×236.538×131.763
NA95500/95927CD	127×234.95×142.875
99575/99102CD	146.05×254×149.225
EE114080/EE114161DC	203.2×406.4×169.85
EE126098/EE126161CD	249.25×381×171.45
HM126048/HM124618XD	119.062×195×142.875
HM129848/HM129814XD	144.45×220.663×155.576
L163149/L163110D	355.6×444.5×136.525
EE181453/EE19235LD	368.249×523.857×203.2
NA231400/231976CD	355.6×501.65×146.05
JH211749/JH211710/DB	65×120×86
KJH211749/KJH211710/DB	65×120×86
KHM237545/KHM237510D	177.8×288.925×142.875
HM237546DW/HM237510	177.8×288.295×123.825
HM237545/HM237510DC	177.8×288.925×142.875
HM237545/237510CD	177.8×288.925×142.875
LM239530T/LM239546TD-LM239549T	181.808×259.969×161.925
EE243196/EE243251DC	498.475×634.873×177.8
HH255149D/HH255110	279.4×457.2×244.75
HH258249TD/HH258210	303.212×495.3×263.525
HM256849/HM256810D	300.038×422.275×174.625
HM269010R/HM261049D	333.375×469.9×342.9
HM262749TD/HM262710	346.175×488.95×174.625
HM265049/HM265010D/P	368.249×523.875×214.312
HM2650497DS/HM265010S	368.3×523.875×185.738
HM266449DW/HM266410	384.125×546.1×193.675
LM272249DW/LM27221-LM272210D	482.6×615.95×33.02
M238840/M238810D	177.8×269.875×119.062
M238848/M238810DC	187.325×269.875×119.062
